| PACKAGING |
|
|
Product dimension (LxWxH) |
132mm*100mm*30mm |
|
weight |
170 gr |
|
qty per unit packing |
1 |
|
Gift Packaging |
Yes |
|
unit packing (LxWxH) |
230*162*53(mm) |
|
qty per export carton |
10 |
|
weight / carton |
6 kgs |
|
export carton (WxHxL) |
480*289*192 (mm) |
| HARDWARE SPECIFICATION |
|
|
FLASH |
4GB Flash ( 8GB,16GB,32GB Optional ) |
|
SDRAM |
1 GB DDR3 (2GB Optional ) |
|
Material |
Plastic |
| POWER SUPPLY SPECIFICATIONS |
|
|
Power Supply (Adapter) |
DC 12V/1.5A |
|
Power Indicator (LED) |
Power ON: Blue ; standby: Red |
| MAIN SPECIFICATIONS |
|
|
CPU |
ARM Cortex-A5 Quad Core /1.5 GHz |
|
GPU |
Mali 450 |
|
H265 |
H265 full HD (hardware) |
|
OS |
Android 4.4 |
|
Video output |
HD JPEG/BMP/GIF/PNG/TIFF |
|
HDD File System |
FAT16, FAT32, NTFS, EXT3 |
|
LAN |
Yes |
|
Wi-Fi |
Build in Wi-Fi 2.4GHz 802.11b/g/n + 5GHz |
| SOFTWARE |
|
|
Network Function |
Support website, DLNA, Miracast, UPnP, Mobile control, VoD content |
| AUDIO OUT |
|
|
Digital audio output |
Optical, HDMI |
|
Analog audio output |
AV |
| VIDEO OUT |
|
|
Screen Aspect Ratio |
NTSC and PAL system |
|
Digital video output |
HDMI |
|
Analog video output |
AV |

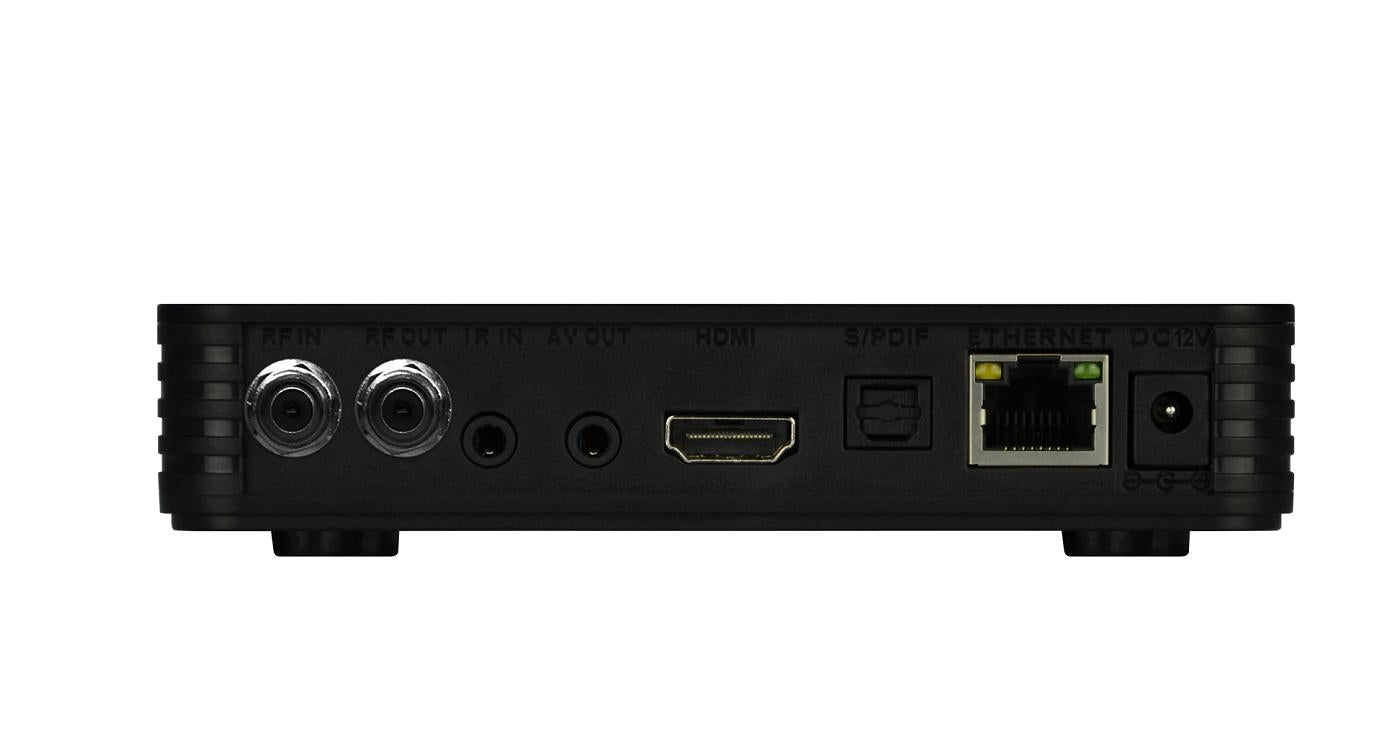

| JACKS |
|
|
USB Socket (A type) |
2 PCS |
|
Optical Jack |
1 PCS |
|
HDMI Socket |
1 PCS |
|
LAN Socket |
1 PCS |
|
TF card Socket |
1 PCS |
|
Wi-Fi antenna |
Built-in |
|
Audio/Video analog output |
1 PCS |
|
Power port |
Built-in |
|
IR receiver |
Built-in |
|
Power LED |
1 PCS |
|
RF IN |
1 PCS |
|
RF Out |
1 PCS |
| ACCESSORIES |
|
|
Remote Control |
1 PCS |
|
Instruction Manual |
1 PCS |
|
AC‐DC SPS Adaptor 5V/2A |
1 PCS |
|
AV Cable |
1 PCS |
|
RJ45 Cable |
1 PCS |
| CONTENT PROTECTION |
|
|
Verimatrix |
Yes if need |
|
Playready |
Yes if need |
|
CDN Tokenisation |
Yes |
| MIDDLEWARE SUPPORT |
|
|
Third party |
eg. Mware Solutions |
| WORKING CONDITIONS |
|
|
Temperature range |
0℃～40℃ |
|
Humidity range |
10%～90%RH |
