Fully Featured
Fast, Stable and Full Featured
Fully Compatible

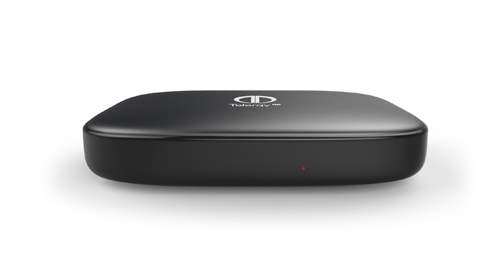

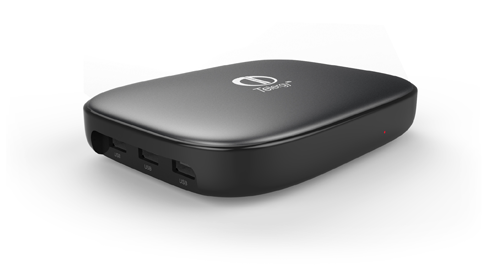

The THD603QC Hybrid T(2) works perfect with accessories like the Keyboard, Air-Mouse and Webcam.
Technical Specifications
| PACKAGING |
|
|
Product dimension |
L166*W138*H28(mm) |
|
qty per unit packing |
1 |
|
unit packing: (LxWxH) |
213*194*88 (mm) |
|
weight |
7.9kgs |
|
Gift Packaging |
yes |
|
export carton (WxHxL) |
434*448*88 (mm) |
|
qty per export carton |
10 |
| HARDWARE SPECIFICATION |
|
|
FLASH |
4 GB Flash |
|
SDRAM |
1 GB DDR3 |
|
Material |
Plastic |
| POWER SUPPLY SPECIFICATIONS |
|
|
Power Supply (Adapter) |
DC 5V/2A |
|
Power Indicator (LED) |
Power ON: Blue ; standby: Red |
| MAIN SPECIFICATIONS |
|
|
CPU |
Quad Core Cortex-A5 Up to 1.5GHz 9420 DMIPS |
|
GPU |
Mali 450 |
|
OS |
Android 4.4 |
|
Video output |
HD max.1920x1080 pixel |
|
HDD File System |
FAT16, FAT32, NTFS, EXT3 |
|
LAN |
Yes |
|
Wi-Fi |
build‐in 2.4G wifi 802.11. b/g/n |
|
Bluetooth |
Yes |
| SOFTWARE |
|
|
Network Function |
Support website, DLNA, Miracast, UPnP, Mobile control, VoD content |
| AUDIO OUT |
|
|
Digital audio output |
Optical, HDMI |
|
Analog audio output |
The left and right sound channel 3.5mm headphone jack |
| VIDEO OUT |
|
|
Screen Aspect Ratio |
NTSC and PAL system |
|
Digital video output |
HDMI |
|
Analog video output |
CVBS |

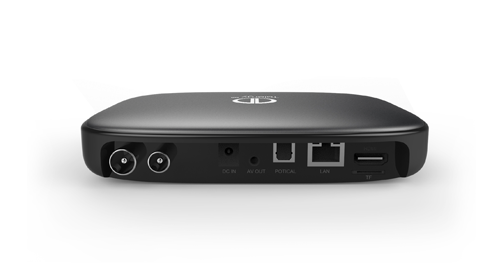

| JACKS |
|
|
USB Socket (A type) |
3 PCS |
|
Optical Jack |
1 PCS |
|
HDMI Socket |
1 PCS |
|
LAN Socket |
1 PCS |
|
TF card Socket |
1 PCS |
|
Wi-Fi antenna |
1 PCS |
|
Audio/Video analog output |
1 PCS |
|
Power port |
1 PCS |
|
IR receiver |
1 PCS |
|
Power LED |
1 PCS |
|
RF IN |
1 PCS |
|
RF Out |
1 PCS |
| ACCESSORIES |
|
|
Remote Control |
1 PCS |
|
Instruction Manual |
1 PCS |
|
AC‐DC SPS Adaptor 5V/2A |
1 PCS |
|
RJ45 Cable |
1 PCS |
|
AV Cable |
2 PCS |
| CONTENT PROTECTION |
|
|
Verimatrix |
Yes, on demand |
|
Widevine |
Yes, on demand |
|
CDN Tokenisation |
Yes |
| MIDDLEWARE SUPPORT |
|
|
Third party |
eg. Mware Solutions |
| WORKING CONDITIONS |
|
|
Humidity range |
10％～90％RH |
|
Temperature range |
0℃～40℃ |
